The Lens Cuff 114mm Cuff with Inserts for 110mm, 105mm and 100mm lens Barrel Diameters
OVERVIEW

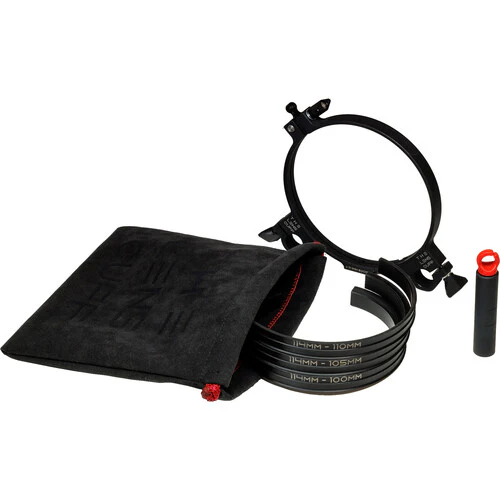

Simplify your follow focus motor mount for a more stable connection to your lens with the 114mm Lens Cuff with Inserts for 110, 105, and 100mm Lens Diameters from Lens Cuff. The Lens Cuff is a durable aluminum cuff that fits around most lenses with a 114mm barrel diameter and provides a solid mount for your follow focus motor directly onto the lens, instead of relying on complex rigging. The Cuff also includes three inserts to fit 110, 105, and 100mm lens barrel diameters.
The aluminum cuff slips onto any part of the lens and it secures with captive M4 screws. There are two symmetrical 15mm rod clamps on the Cuff to fit the included short 15mm rod for mounting your follow focus motor on either side of the lens. There is a loop on the end of the rod for cable management. On the bottom of the Cuff is a 1/4"-20 thread with anti-twist divots to add an optional lens support for longer and heavier lenses. The Lens Cuff and included inserts and rod all fit in the included Alcantara pouch.
Feature
- Machined from a single block of aluminum and hard anodized
- Custom spring-loaded wingnut fasteners with standard M4 threads
- Low-profile lens support foot with 1/4"-20 thread and ARRI-style anti-twist divots
- Two symmetrical 15mm rod clamps
- Includes inserts to fit 110, 105, and 100mm lens diameters
Description
OVERVIEW
Simplify your follow focus motor mount for a more stable connection to your lens with the 114mm Lens Cuff with Inserts for 110, 105, and 100mm Lens Diameters from Lens Cuff. The Lens Cuff is a durable aluminum cuff that fits around most lenses with a 114mm barrel diameter and provides a solid mount for your follow focus motor directly onto the lens, instead of relying on complex rigging. The Cuff also includes three inserts to fit 110, 105, and 100mm lens barrel diameters.
The aluminum cuff slips onto any part of the lens and it secures with captive M4 screws. There are two symmetrical 15mm rod clamps on the Cuff to fit the included short 15mm rod for mounting your follow focus motor on either side of the lens. There is a loop on the end of the rod for cable management. On the bottom of the Cuff is a 1/4"-20 thread with anti-twist divots to add an optional lens support for longer and heavier lenses. The Lens Cuff and included inserts and rod all fit in the included Alcantara pouch.
Feature
- Machined from a single block of aluminum and hard anodized
- Custom spring-loaded wingnut fasteners with standard M4 threads
- Low-profile lens support foot with 1/4"-20 thread and ARRI-style anti-twist divots
- Two symmetrical 15mm rod clamps
- Includes inserts to fit 110, 105, and 100mm lens diameters
