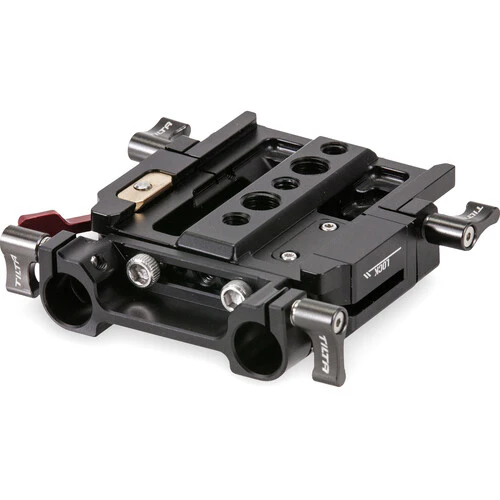

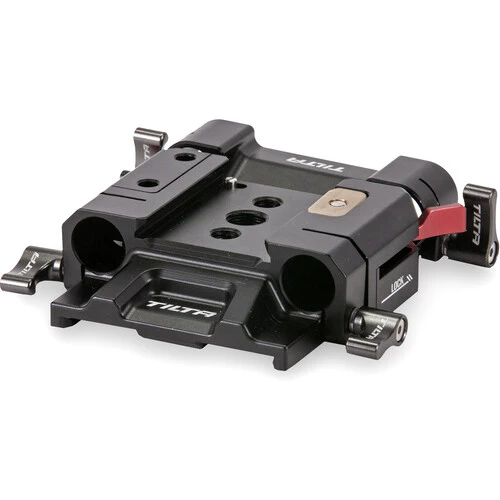

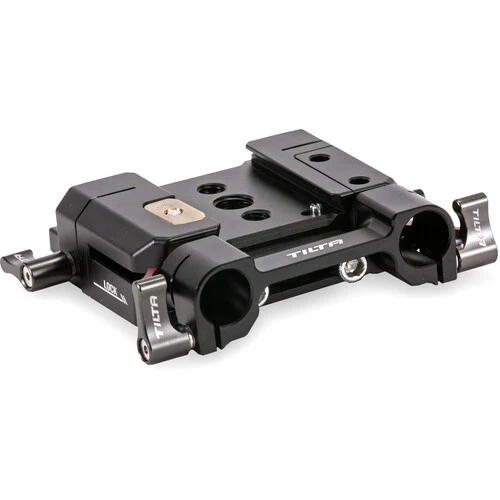

Tilta 15mm LWS Baseplate Type V (Black)
- Baseplate with 15mm LWS Rod Support
- Designed for Height of Canon C70
- Compatible with Dovetail Plates
- Use with Tilta to ARRI Baseplate Adapter
- 1/4''-20 & 3/8''-16 Threads on Bottom
- Aluminum & Stainless Steel Construction

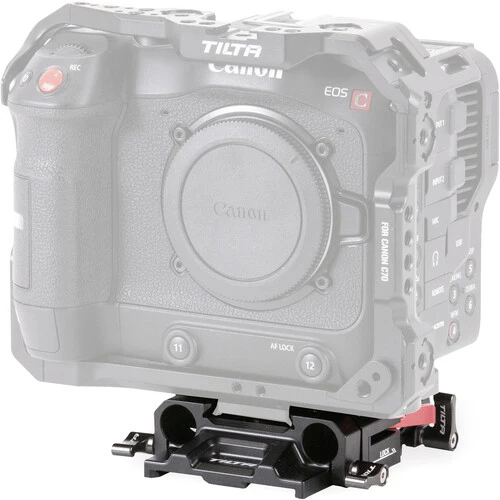

Add quick release capability and 15mm rod support to your Canon C70 camera with the black Tilta 15mm LWS Baseplate Type V. The baseplate is compatible with Tilta full cages and allows you to use the camera with a shoulder support or tripod system, or to add 15mm LWS rod support for accessories like a follow focus, a matte box, or a lens motor. It is designed to put the Canon C70 camera at the proper lens height when mounted onto optional 15mm rods.
The dovetail bottom slides onto a separately available Tilta-standard dovetail plate or ARRI-style plate when used with the separately available Tilta to ARRI adapter. The bottom of the baseplate also incorporates several 1/4"-20 and 3/8"-16 threads for mounting a quick release plate. The baseplate is constructed with durable aluminum and stainless steel components.
Compatibility
- Canon C70 camera
- Arca-type quick release plates
- Tilta dovetail plates
- Tilta camera cage for Canon C70
- Various camera rigs and tripods
15mm LWS Rod Support
Provides 15mm LWS rod support for accessories like a follow focus, matte box, or lens motor
Tripod Mounting
Bottom 1/4"-20 and 3/8"-16 threads are compatible with almost any quick release plate
SPECS
| Rod Standard | 15 mm LWS / 60 mm Spacing |
| Battery Plate Type | None |
| Accessory Mounting | None |
| Tripod Mounting | 1/4"-20 Thread, 3/8"-16 Thread |
| Rod Ports | Baseplate, Front: 2 x 15 mm Rod Port Baseplate, Rear: 2 x 15 mm Rod Port |
| Shoe Mounting | None |
| Rosettes | None |
| Support Type | Baseplate |
| Grip Type | None |
| Camera Compatibility | Canon EOS C70, Universal |
| Construction | Aluminum, Steel |
| Dimensions | Not Specified by Manufacturer |
| Weight | 0.76 lbs |
